PR150F3_刮板輸送鏈
|

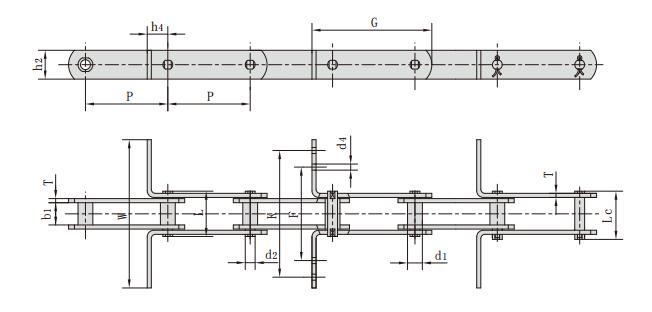

鏈條型號 |
節距 |
套筒直徑 |
內節內寬 |
銷軸直徑 |
銷軸長度 |
抗拉強度 |
平均抗拉強度 |
每米長重 |
|
P |
d1 |
b1 |
d2 |
L |
Lc |
Q |
Q0 |
q |
|
mm |
mm |
mm |
mm |
mm |
mm |
kN/Ibf |
kN |
kg/m |
|
PR150F3 |
150.0 |
30.0 |
38.00 |
21.00 |
- |
83.00 |
200.0/44960 |
220.0 |
12.40 |
|
鏈條型號 |
G |
F |
W |
K |
h4 |
h2 |
d4 |
T |
|
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
PR150F3 |
234.0 |
98.0 |
210.0 |
250.0 |
50.00 |
56.0 |
11.0 |
8.0 |
